Description

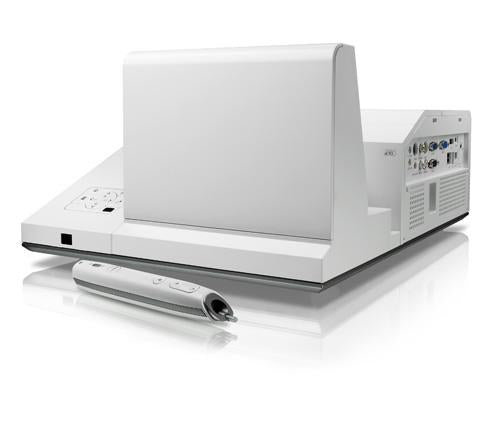

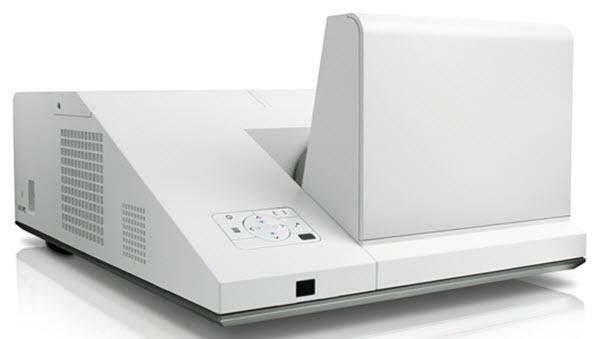

The Dell S500 Projector is a WXGA Ultra Short Throw (UST) Projector. This lamp based projector is capable of displaying 3,200 Lumens at its brightest setting with a native resolution of 1280x800 , and is 3D capable. The internal DLP technology touts higher contrast, less visible pixels and more portability.
Brightness
3,200 Lumens (ANSI)
Resolution
1280x800
Aspect Ratio
16:10 (WXGA)
Contrast
2,300:1 (full on/off)
Display Type
0.65" DLP x 1
Color Wheel
2x speed
Color Processing
10-bit
Video Modes
720p, 1080i, 1080p/60, 576i, 576p, 480p, 480i
3D Modes
PC 3D Ready
Lamp Type
280W UHP bulb
Lamp Life
2,500 hours / 3,000 hours (Eco)
Lamp Model
Fixed focal length , manual focus
Optional Lenses
No
Lens Shift
No
Throw Distance
1.6' - 2.2'
Image Size
77.00" - 100.00"
Throw Ratio
0.34:1 (D:W)
Projector Placement
Top of Form
Bottom of Form
diagonal screen, place the projector lens 2'-2" from the screen.
Digital Keystone
No
Projector Size
7.50" x 12.90" x 16.60" (HxWxD)
Weight
15.6 lbs
Audible Noise
34 dB / 31 dB (Eco)
Internal Speakers
5.0 Watts × 2
Power
345 Watts 100V - 240V
Connection Panel
12-Volt Trigger
Composite: RCA
HDMI 1.3
Network: RJ-45
RS232: DB-9pin
S-Video
USB x 2
VGA In: Dsub-15pin x 2
Features
PC 3D Ready
Picture-in-Picture
Short-Throw
Closed Captioning
Crestron RoomView
Additional Features
Get closer than ever to the big picture with the DellTM S500 Ultra Short Throw Projector, which can project an approximate 80" diagonal image from just 20" away
