Description

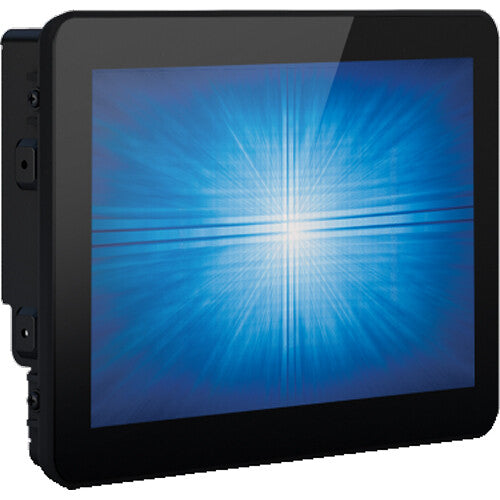

Elo Touch 1093L 10.1" Open-Frame Touchscreen Monitor
The Elo Touch 1093L is a 10.1-inch commercial open-frame touchscreen monitor engineered for OEMs, kiosk manufacturers, and system integrators. Featuring TouchPro® Projected Capacitive (PCAP) technology, a compact industrial design, and a bright WXGA display, the 1093L delivers responsive 10-point multi-touch performance with exceptional image clarity. Designed for long-term commercial reliability, it is ideal for self-service kiosks, industrial automation, healthcare equipment, gaming machines, transportation, and retail applications.

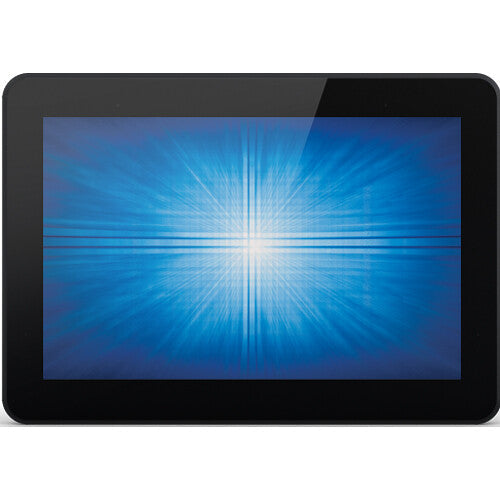

Bright WXGA Display
Deliver sharp visuals in a compact form factor.
- 10.1-inch LED-backlit TFT LCD
- 1280 × 800 WXGA resolution
- 450-nit brightness (with touch)
- 800:1 contrast ratio
- 16:10 widescreen aspect ratio
The high-brightness display provides excellent image quality with wide viewing angles for commercial environments.
TouchPro® PCAP Technology
Fast, accurate multi-touch interaction.
- Projected Capacitive (PCAP) touchscreen
- Supports up to 10 simultaneous touch points
- Edge-to-edge glass design
- USB touch interface
- Smooth, tablet-like touch experience
TouchPro® technology delivers precise, drift-free touch performance for intuitive user interaction.

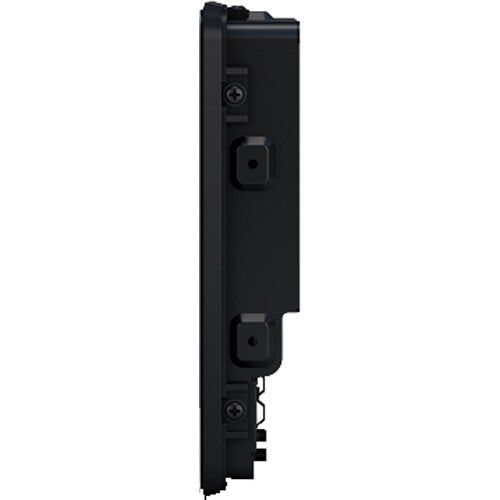

Compact Open-Frame Design
Built for embedded installations.
- Slim open-frame construction
- Flush-mount brackets included

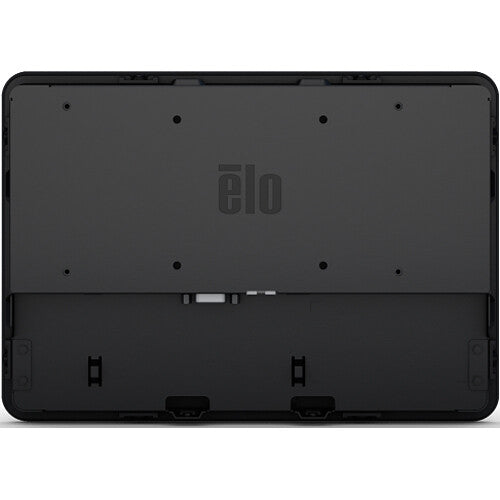

- 75 × 75 mm VESA mounting
- Landscape, portrait, or face-up installation
- Remote OSD control box included
The compact chassis makes the 1093L easy to integrate into kiosks, cabinets, control panels, and custom enclosures.
Flexible Connectivity
Compatible with modern commercial systems.
- HDMI input
- DisplayPort input
- VGA input
- USB 2.0 touch interface
- External 12V DC power
Multiple video inputs simplify integration with embedded PCs and commercial media players.
Commercial-Grade Reliability
Designed for continuous operation.
- Commercial-grade construction
- 50,000-hour MTBF
- Touchscreen sealed to bezel and LCD
- Energy-efficient LED backlight
- 3-year manufacturer's warranty
Built for demanding commercial applications requiring dependable long-term performance.
