Description

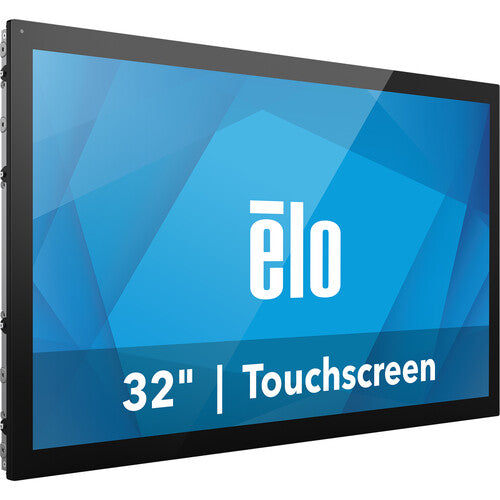

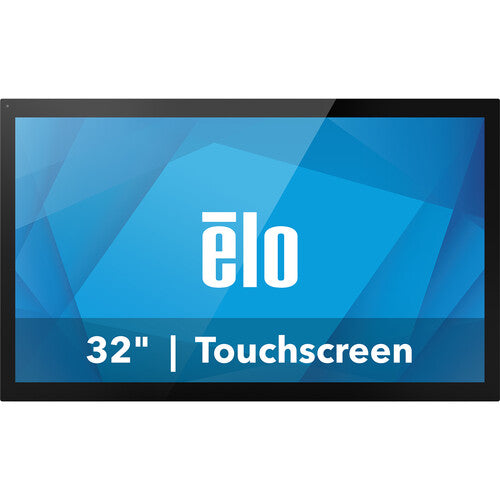

Elo Touch 3263L 31.5" Open-Frame Touchscreen Monitor
The Elo Touch 3263L is a 31.5-inch commercial open-frame touchscreen monitor designed for OEMs, kiosk manufacturers, and system integrators building interactive self-service solutions. Equipped with TouchPro® Projected Capacitive (PCAP) technology, up to 40 simultaneous touch points, and a bright Full HD display, the 3263L delivers an exceptional tablet-like experience for retail, hospitality, healthcare, industrial automation, transportation, and gaming applications. Its ultra-slim design, touch-through capability, and 24/7 commercial reliability make it an ideal display for custom enclosures and kiosks.
Brilliant Full HD Display
Enjoy crisp visuals with outstanding clarity.
- 31.5-inch LED-backlit TFT LCD
- 1920 × 1080 Full HD resolution
- 500-nit brightness (425 nits with touch)
- 3000:1 contrast ratio
- 178° wide viewing angles
The high-brightness display delivers vibrant colors and sharp text while maintaining excellent visibility in commercial environments.
TouchPro® PCAP Technology
Advanced multi-touch designed for commercial applications.
- Projected Capacitive (PCAP) touchscreen
- Supports up to 40 simultaneous touch points
- Palm rejection technology
- Touch-through capability
- Supports operation with gloves
TouchPro® technology provides fast, accurate interaction while supporting installation behind protective glass up to 6 mm thick, making it ideal for public-facing kiosks.

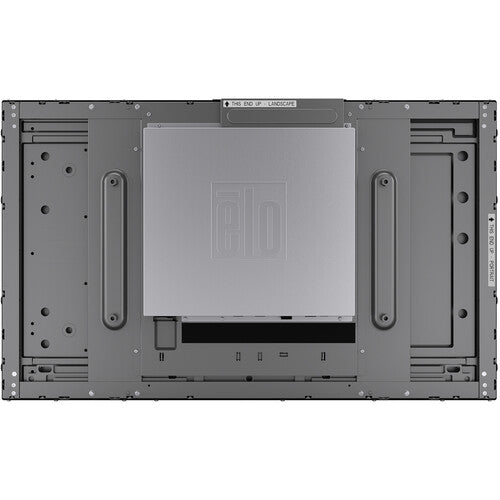

Slim Open-Frame Design
Purpose-built for OEM integration.
- Ultra-slim open-frame construction
- Edge-to-edge glass design
- Flush-mount installation
- Landscape, portrait, or tabletop orientation
- Side-mount brackets included
Its compact industrial design simplifies integration into kiosks, vending machines, gaming cabinets, and industrial control systems.
Flexible Connectivity
Easy integration with commercial hardware.
- 2 × HDMI 1.4 inputs
- VGA input
- USB 2.0 Type-B touch interface
- RJ45 port for optional wired OSD remote
Comprehensive connectivity supports modern and legacy systems while simplifying installation and maintenance.
Commercial-Grade Durability
Engineered for continuous operation.
- Ready for 24/7 operation
- IK07 impact-resistant glass
- UL60950 ball-drop compliant
- IP65 front seal when properly integrated
- Energy Star® 8.0 certified
Built to withstand demanding public environments while reducing power consumption and heat generation.
Reliable Performance
Designed for long-term deployment.
- 50,000-hour MTBF
- Commercial-grade construction
- Anti-glare or anti-friction glass options
- Fanless monitor design
- 3-year manufacturer's warranty
The 3263L delivers dependable touchscreen performance with minimal maintenance requirements over an extended product lifecycle.
