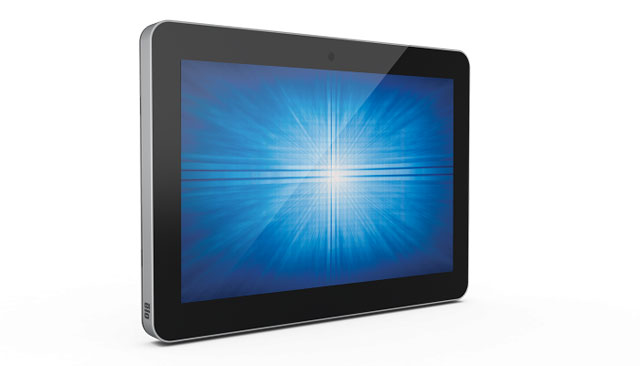

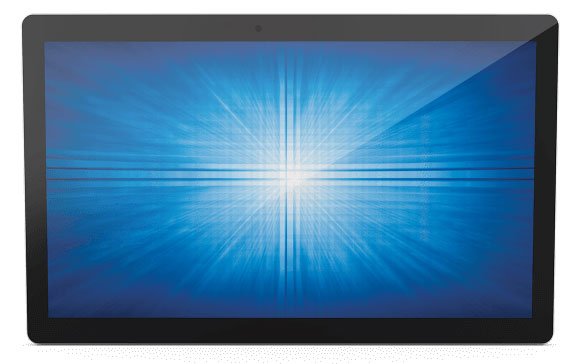

Elo Touch I-Series 2 E693022 22" Interactive Touchscreen Computer

The Elo Touch I-Series 2 E693022 is a 22-inch commercial all-in-one touchscreen computer designed for self-service kiosks, point-of-sale systems, digital signage, hospitality, corporate workspaces, and industrial applications. Powered by a 9th Generation Intel® Core™ i5-9500TE processor with Windows 10 IoT Enterprise LTSC, this all-in-one system delivers enterprise-class performance in a sleek, durable fixed-tablet design. Featuring a 21.5-inch Full HD display, TouchPro® Projected Capacitive (PCAP) technology, 10-point multi-touch, 8GB RAM, and a 128GB SSD, the E693022 is built for continuous commercial operation.

Brilliant Full HD Touch Display

Deliver vibrant visuals and responsive interaction.

• 21.5-inch TFT LCD display
• 1920 × 1080 Full HD resolution
• TouchPro® Projected Capacitive (PCAP) touchscreen
• Up to 10 simultaneous touch points
• 250-nit brightness (225 nits with touch)

The edge-to-edge touchscreen provides a smooth, tablet-like experience with wide viewing angles and excellent image clarity.

Powerful Intel® Performance

Built for demanding commercial workloads.

• Intel® Core™ i5-9500TE processor
• Windows 10 IoT Enterprise LTSC
• 8GB DDR4 RAM
• 128GB SSD
• Intel® UHD Graphics 630

Enterprise-class Intel computing delivers fast, reliable performance for interactive software, digital signage, and business applications.

Elo Edge Connect™ Expandability

Customize the system to fit your business.

• Barcode scanner support
• Magnetic stripe reader (MSR)
• Fingerprint reader
• RFID reader
• EMV payment cradle
• Webcam and 3D camera
• Status light and speaker bar options

The modular Edge Connect system allows accessories to be added or replaced as business requirements evolve.

Enterprise Connectivity

Connect seamlessly to your infrastructure.

• Gigabit Ethernet
• Wi-Fi 802.11ac
• Bluetooth® 5.0
• USB 3.0 port
• Four Edge Connect Micro-USB ports
• 3.5 mm audio output

Comprehensive connectivity supports POS peripherals, networking, and enterprise deployments.

Flexible Installation

Deploy virtually anywhere.

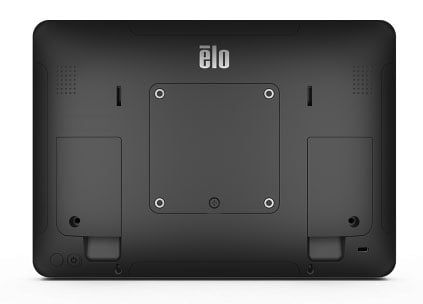

• 75 × 75 mm and 100 × 100 mm VESA compatible
• Portrait or landscape orientation
• Countertop, wall, shelf, or pole mounting
• Compatible with Elo self-service stands

The slim, fixed-tablet design integrates easily into kiosks, workstations, and interactive displays.

Commercial-Grade Reliability

Designed for continuous operation.

• Commercial-grade construction
• Fanless architecture
• 50,000-hour MTBF
• Kensington security lock
• 3-year standard warranty

Built for high-traffic public environments with long product life and dependable performance.
