Description
Effortlessly present, share, write, and save files in any format with the Google EDLA-certified SMART Board® MX Pro series interactive display, embedded with both collaboration tools and Google Play Protect services. Built to stand the test of time and offering seamless over-the air updates, this interactive display not only easily fits into your
existing setup, but will also remain a dependable investment for years to come.

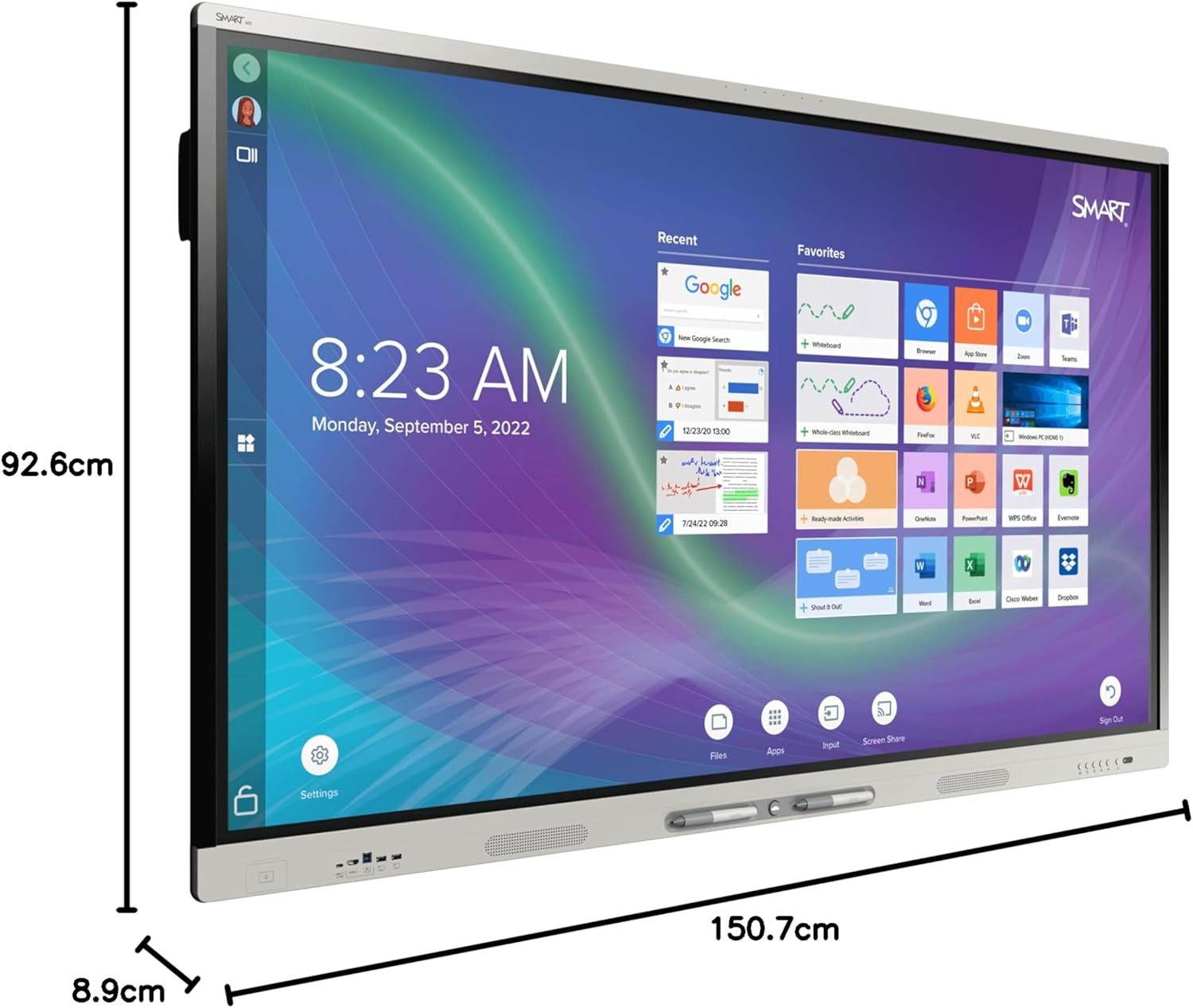

Screen sizes (diagonal) 55" | 65" | 75" | 86"
Backlight LED
Aspect ratio 16:9
Maximum display resolution 4K UHD (3840 × 2160)
Refresh rate 60 Hz
Lifespan ≥ 50,000 hours
Brightness 55": 300 cd/m², 65", 75", 86": 400 cd/m²
Display response time ≤ 8 ms
Viewing angle 178°
Glass 55": Full heat-tempered | Anti-glare 65", 75", 86": Full heat-tempered | Anti-glare | Bonded
Frame color White
Convenience buttons Power | Home | Volume | Input select | Screen shade | Freeze frame
Sensors Proximity2 | Ambient light | Infrared
Audio 55": 2 integrated 15 W speakers, 65", 75", 86": 2 integrated 20 W speakers
Integrated linear six-microphone array with support for onboardacoustic echo cancellation
Interactive experience
Touch technology HyPr Touch™ with Advanced IR
Touch features Simultaneous tool differentiation Object Awareness™ Silktouch™
Typical touch response time ≤ 5 ms
Frame rate ≥ 200 Hz
Accuracy 1 mm
Minimum object size 2 mm
Multitouch capabilities Up to 50 touch points (OS
dependent)
Tools included Pens (×2)
Tool holders Magnetic | Frame-mounted
Software Included iQ embedded Android™ OS SMART Meeting Pro®l Room license
l Personal licenses (×10) SMART Product Drivers and SMART
Ink® SMART Remote Management3 Optional SMART TeamWorks™
