ViewSonic IFP8652-1C-E1 86" 4K UHD ViewBoard Interactive Display Bundle with Wi-Fi 6 Adapter and Wall Mount
Transform classrooms, conference rooms, and collaborative learning environments with the ViewSonic IFP8652-1C-E1 86" 4K UHD ViewBoard Interactive Display Bundle. This professional solution combines an 86-inch interactive flat panel, ViewSonic VB-WIFI-001 wireless adapter, and WMK-047-2 fixed wall mount for an integrated teaching and presentation experience.
Featuring 3840 x 2160 Ultra HD resolution, 33-point infrared touch technology, 400-nit brightness, Android-based computing, and myViewBoard collaboration software, the IFP8652-1C-E1 helps educators and professionals create more engaging and productive interactive experiences.
Stunning 86" 4K UHD Interactive Display
Experience sharp visuals and detailed content on an expansive 86-inch 4K Ultra HD touchscreen.
With 3840 x 2160 resolution, 400 cd/m² brightness, a 1200:1 static contrast ratio, and 178-degree viewing angles, the ViewBoard delivers clear presentations, educational materials, and multimedia content.
Its 3.2mm anti-glare tempered glass with 7H hardness helps reduce distracting reflections while protecting the display surface during everyday use.
Advanced 33-Point Infrared Touch Technology
Encourage interactive collaboration with Slim IR touch technology, supporting up to 33 simultaneous touch points in Windows and 20 touch points in Android.
Multiple users can write, draw, annotate, and interact with digital content simultaneously, making the display ideal for classroom activities, group brainstorming, and collaborative meetings.
With 4ms touch latency, palm recognition, and object awareness, the touchscreen provides a responsive and natural writing experience.
Dual-Tip Stylus Recognition
Create detailed annotations using compatible styluses with 2mm and 8mm tip recognition.
The ViewBoard automatically recognizes different pen tip sizes, allowing educators and presenters to switch between writing and highlighting activities.
Two stylus pens are included with the display.

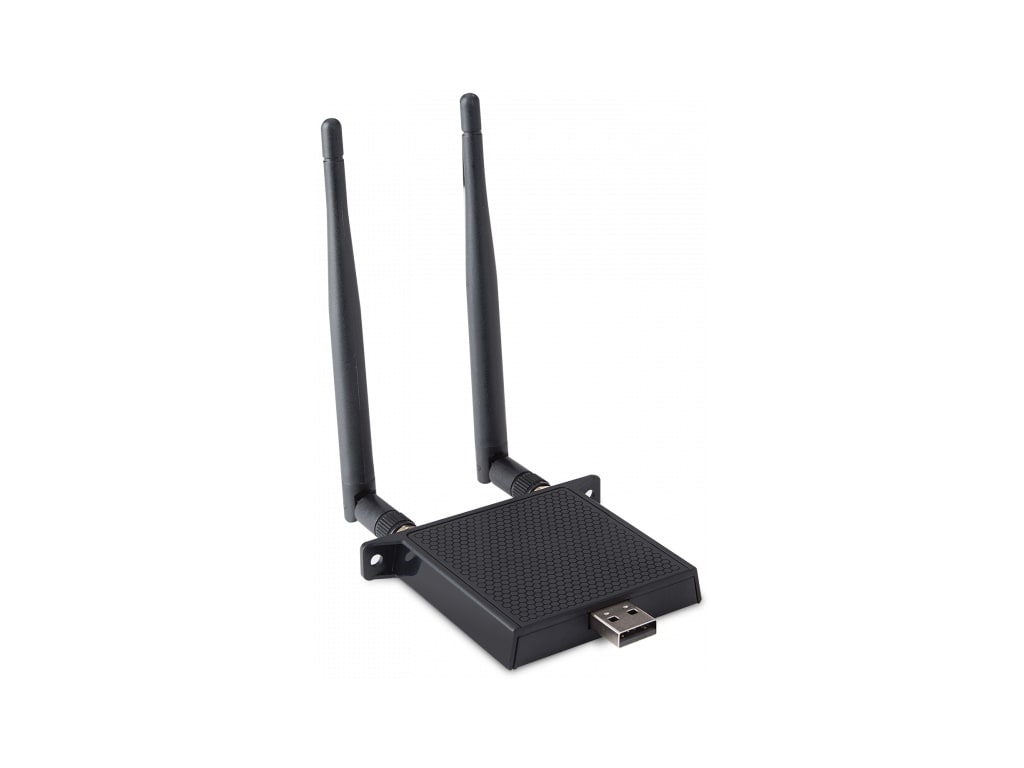

Included Wi-Fi 6 and Bluetooth Adapter
The IFP8652-1C-E1 bundle includes the ViewSonic VB-WIFI-001 wireless module for convenient wireless networking.
The manufacturer's technical specifications identify 802.11ax Wi-Fi 6 and Bluetooth 5.2 support.
Wi-Fi connectivity is provided through the included wireless module rather than a confirmed permanently built-in Wi-Fi chipset.
A wired Ethernet connection is also available for managed network environments.

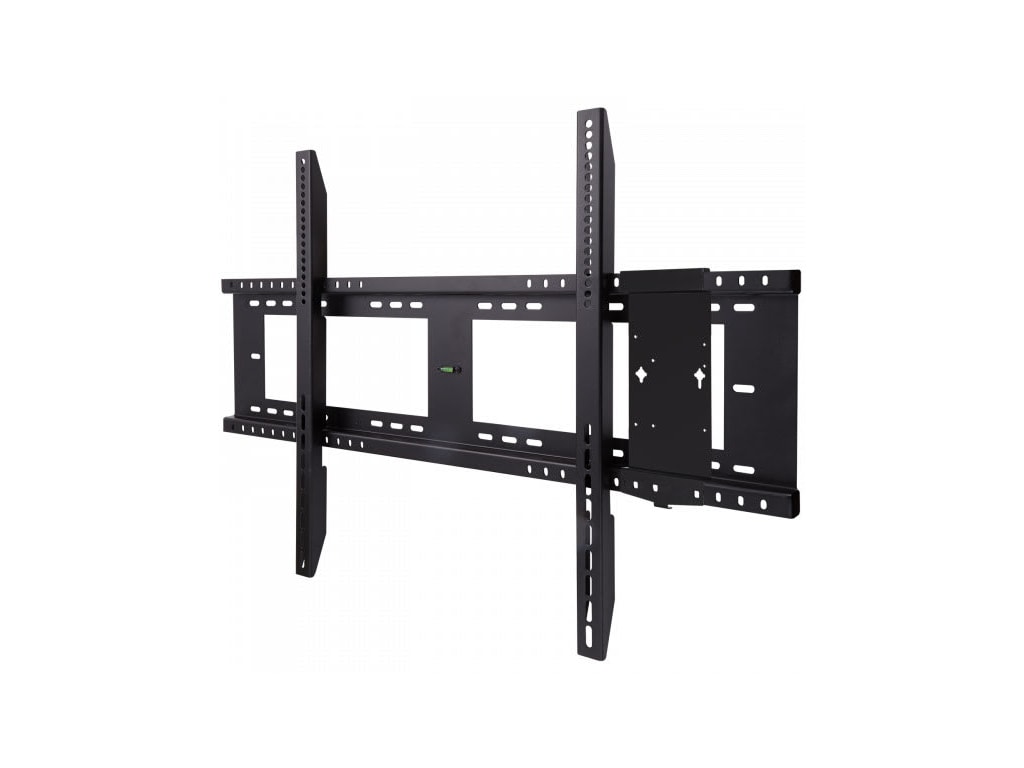

Included WMK-047-2 Fixed Wall Mount
Simplify installation with the included ViewSonic WMK-047-2 fixed wall mount.
Designed for compatible large-format ViewBoard displays, the mount provides a secure installation solution for classrooms, conference rooms, and training facilities.
The manufacturer also identifies an included mini PC bracket, allowing compatible external computers to be mounted near the display.
The ViewBoard supports 800 x 600 mm VESA mounting.
Integrated Android Computing Platform
The IFP8652-1C features ViewBoard OS based on Android 9.0, powered by a 1.8GHz ARM Cortex-A73 quad-core processor.
With 4GB LPDDR4 RAM and 32GB eMMC storage, the display supports compatible educational applications, digital whiteboarding, and multimedia content without requiring an external computer.
Its ARM Mali-G52 graphics processor helps deliver smooth performance for interactive applications.
myViewBoard Digital Whiteboarding
Enhance teaching and collaboration with the myViewBoard software suite.
Educators can create interactive lessons, annotate documents, draw diagrams, and incorporate multimedia content directly on the touchscreen.
The platform provides flexible tools for classroom instruction, professional presentations, and group collaboration.
Wireless Screen Sharing with ViewBoard Cast
Share presentations and multimedia from compatible laptops, tablets, and mobile devices using ViewBoard Cast.
Wireless casting enables participants to display content on the large interactive screen over a supported network.
This functionality helps simplify presentations and encourages collaboration without requiring every participant to connect directly through an HDMI cable.
Eight-Microphone Beamforming Array
Improve audio capture with the display's integrated eight-microphone beamforming array.
Built-in noise cancellation helps reduce unwanted background sound during compatible conferencing and collaboration applications.
This feature is particularly useful for classrooms, hybrid learning environments, and meeting spaces.
Powerful 45W Integrated Audio
Deliver clear multimedia audio with the ViewBoard's integrated 2.1-channel speaker system.
The display features two 15W speakers and a 15W subwoofer, providing 45W total audio output.
This configuration is suitable for instructional videos, presentations, multimedia lessons, and business communications.
Centralized Display Management
Simplify IT administration with myViewBoard Manager.
Administrators can remotely monitor compatible ViewBoard displays, manage selected settings, and schedule updates through a centralized management platform.
This helps schools and organizations maintain multiple interactive displays across classrooms and meeting rooms.
Flexible Professional Connectivity
Connect laptops, computers, media players, and AV equipment using HDMI, VGA, USB-C, USB, and Ethernet connections.
The display also includes an OPS expansion slot for compatible optional slot-in computers.
